Eccentric Adjustable Live Center for Billiard Cue Lathe - MT2 Morse Taper, High Precision

Achieve flawless concentricity on every billiard cue you turn. The Eccentric Adjustable Live Center is precision-engineered for cue makers who demand accuracy. With its built-in eccentric adjustment screw (0.02 mm per division), you can fine-tune the center point in real time — eliminating runout and ensuring every cue shaft is perfectly round.

Key Features

  • Eccentric Adjustment Screw: 0.02 mm per division for ultra-fine concentricity correction — ideal for high-precision cue turning.
  • Morse Taper No. 2 (MT2) Shank: Universal fit for most lathes used in billiard cue manufacturing.
  • Quenched & Hardened Rotating Center: Heat-treated for superior wear resistance and long service life under continuous machining.

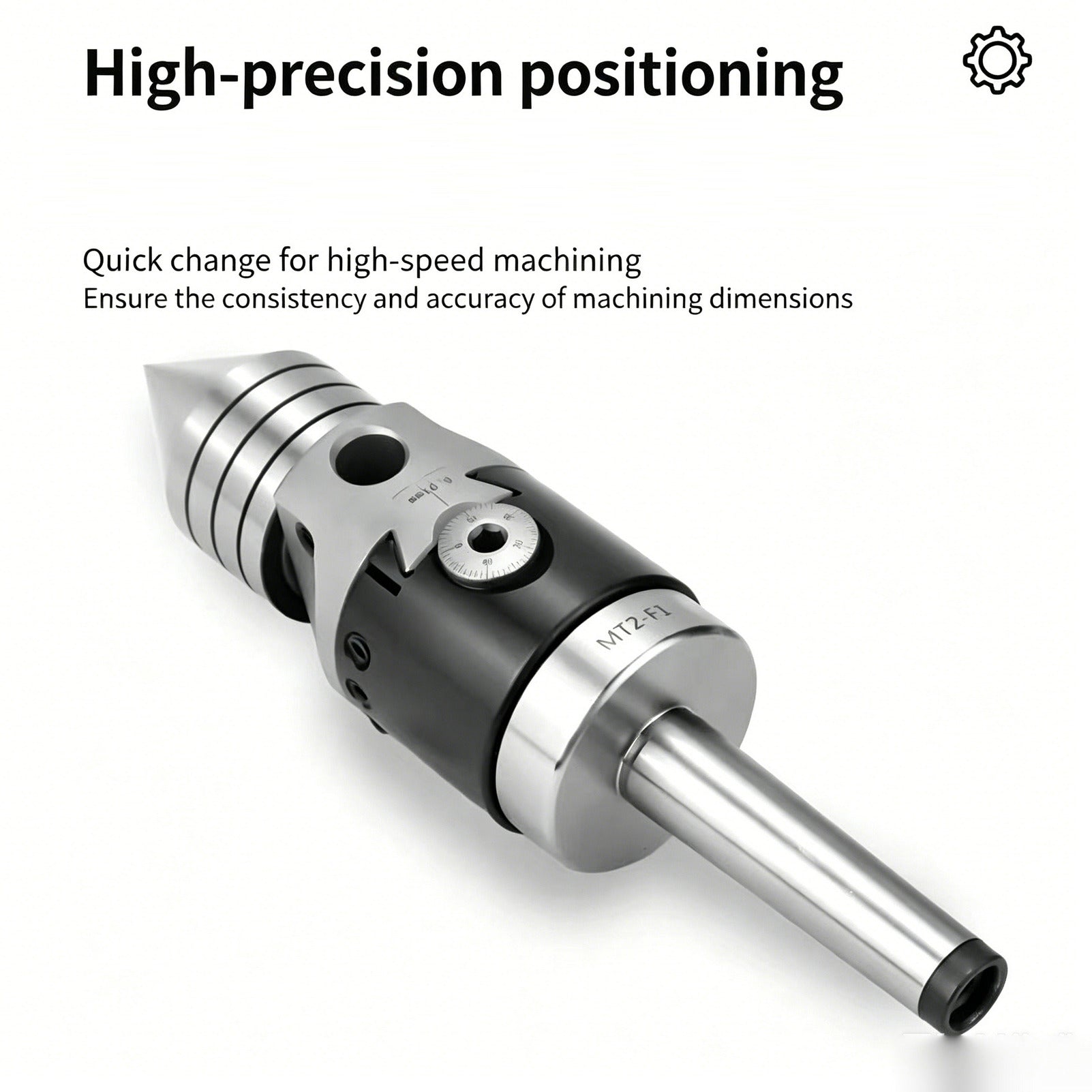

  • High-Precision Positioning: Quick-change design ensures consistent and repeatable machining dimensions across every cue.

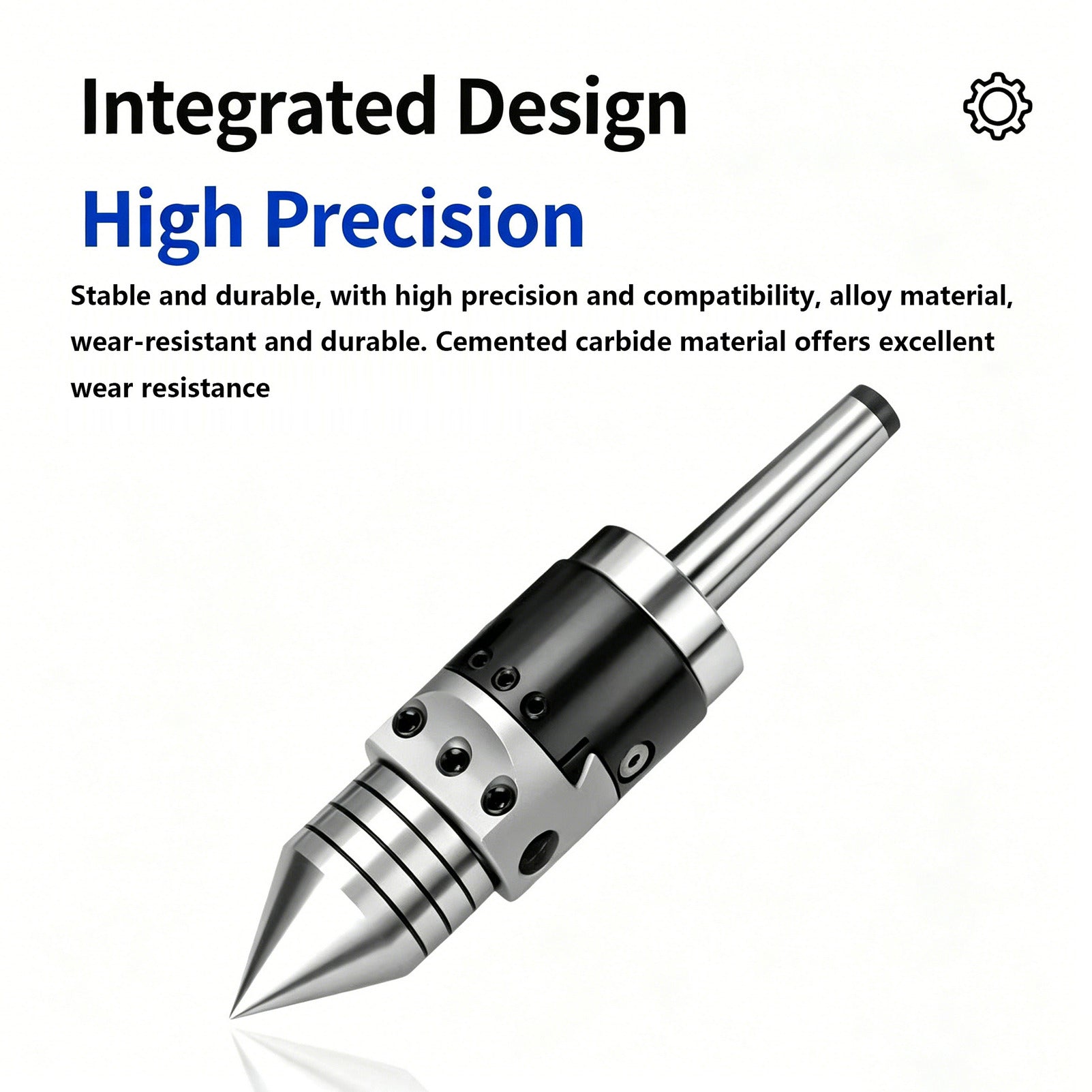

  • Integrated Design: Cemented carbide tip with alloy body — stable, durable, and built for professional workshop use.
  • Smooth Rotation: Precision bearings allow the center to rotate freely with the workpiece, reducing friction and heat.

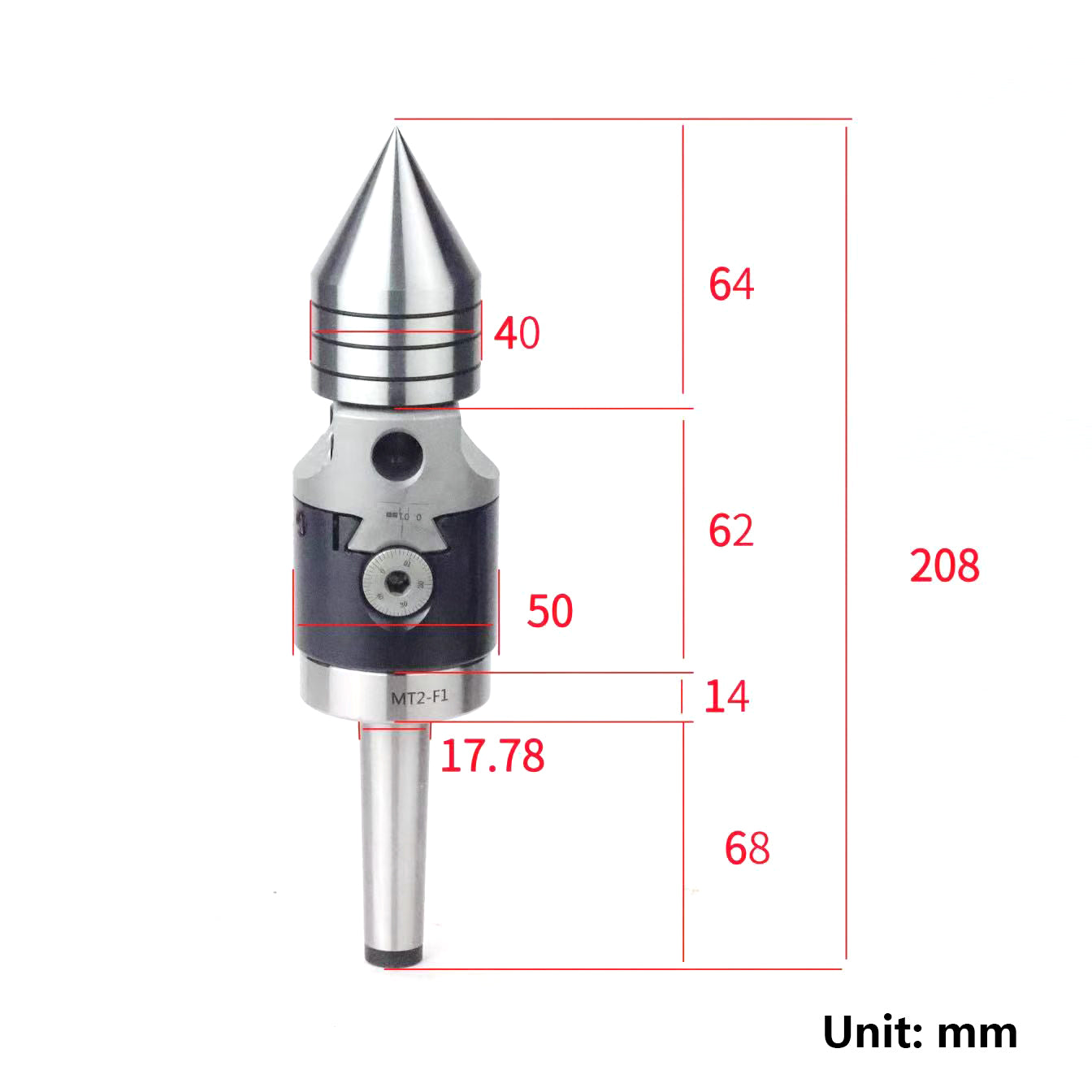

Specifications

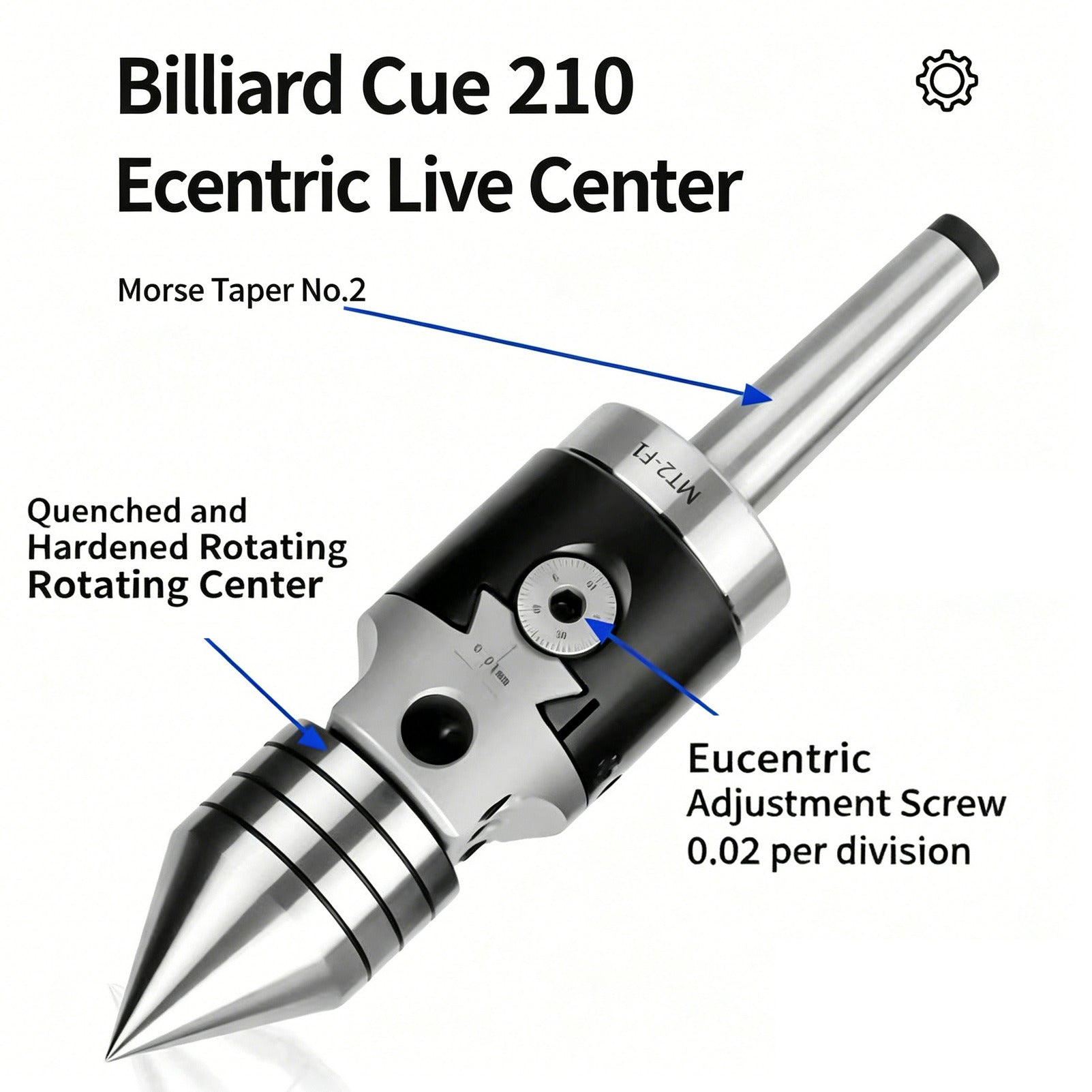

  • Model: Billiard Cue 210 Eccentric Live Center
  • Taper: Morse Taper No. 2 (MT2-F1)
  • Adjustment Precision: 0.02 mm per division
  • Tip Material: Cemented Carbide
  • Body Material: Alloy Steel (Quenched & Hardened)
  • Rotating Head Diameter: 40 mm
  • Body Diameter: 50 mm
  • Shank Diameter: 17.78 mm
  • Total Length: 208 mm
  • Head Section Height: 64 mm (cone) + 62 mm (body)
  • Shank Length: 68 mm
  • Shank Neck: 14 mm

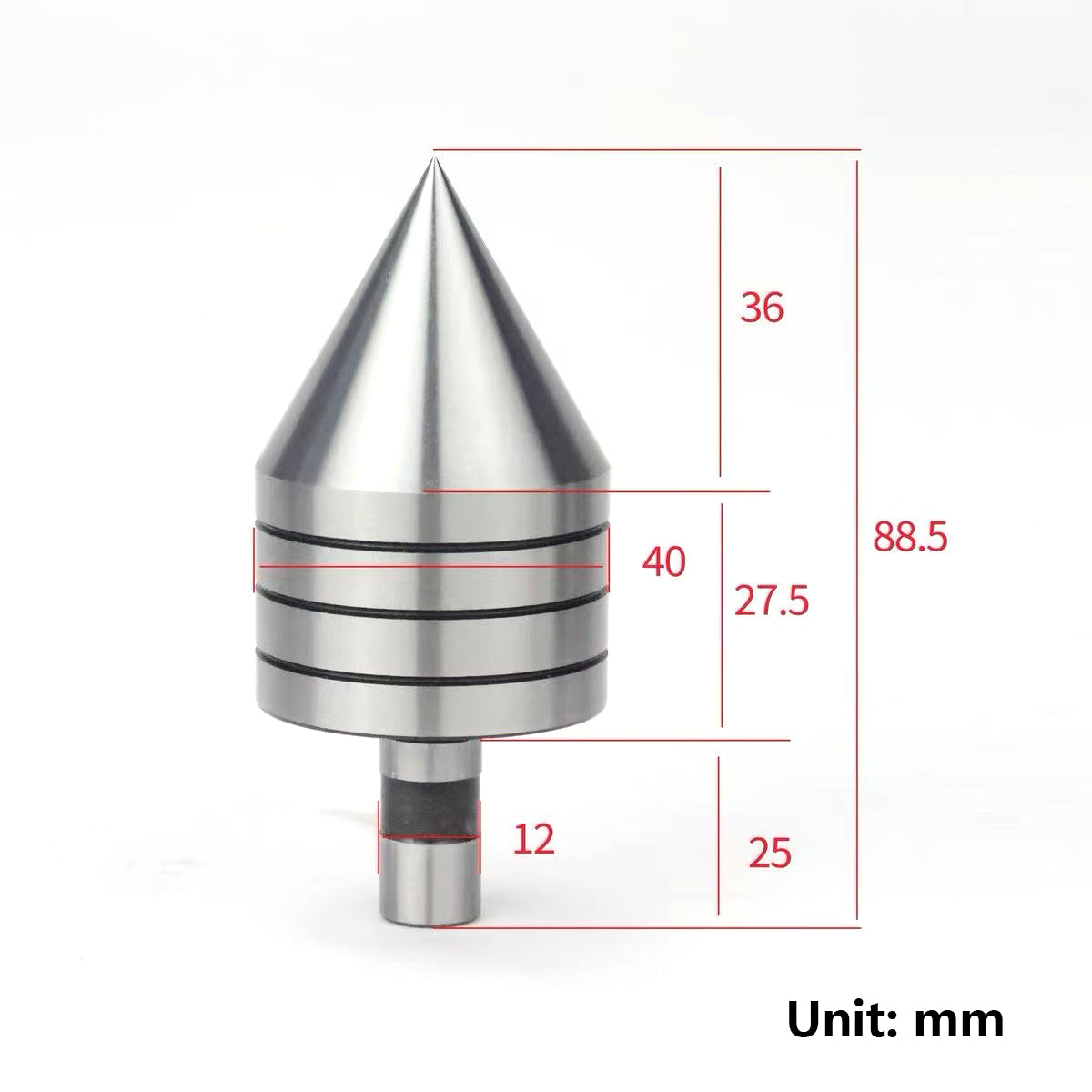

Rotating Head Dimensions (Unit: mm)

  • Total Height: 88.5 mm
  • Cone Height: 36 mm
  • Body Height: 27.5 mm
  • Stem Height: 25 mm
  • Outer Diameter: 40 mm
  • Stem Diameter: 12 mm
