The machine is capable to make tips, ferrules, tenons adjustment and replacement.

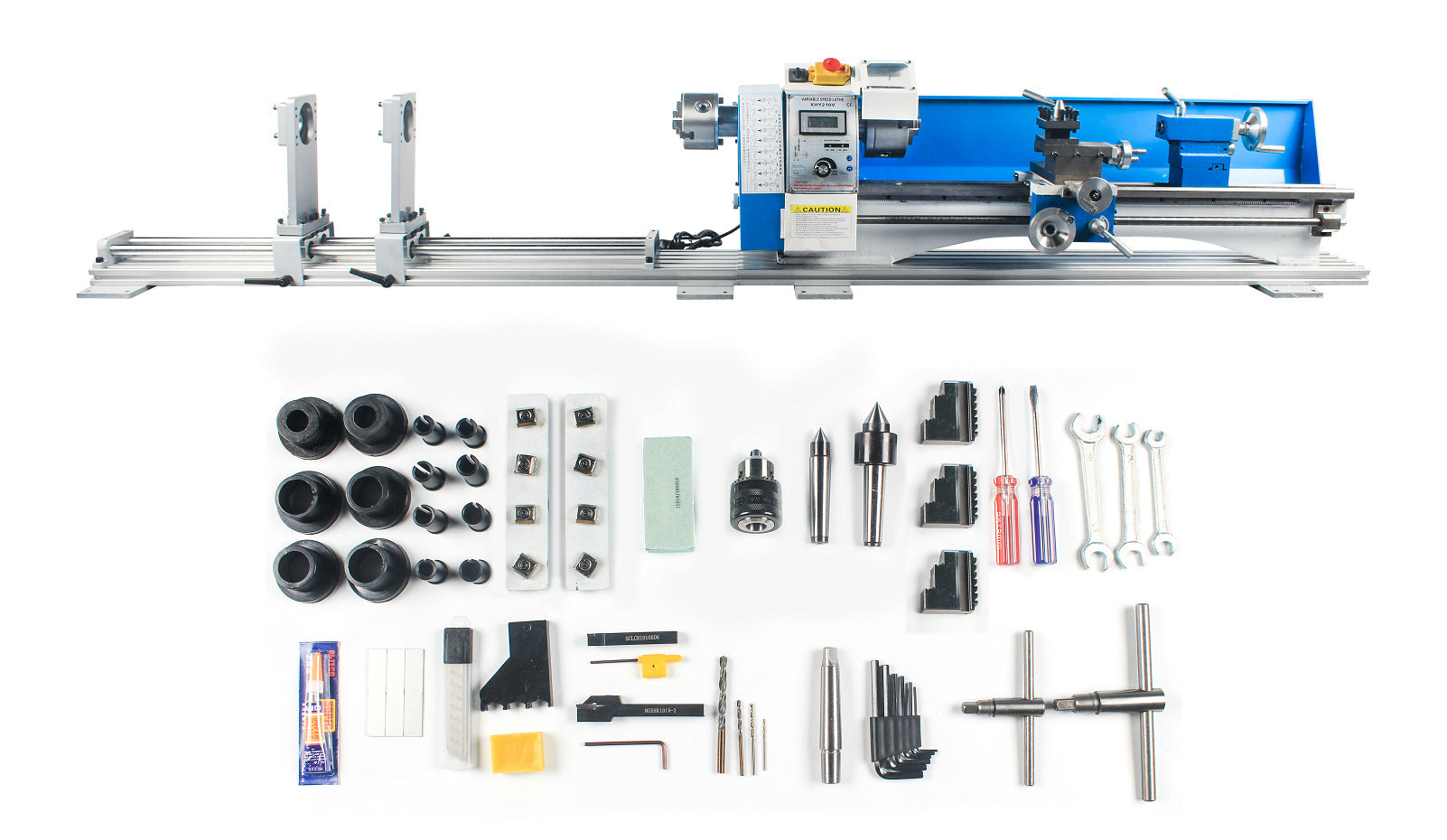

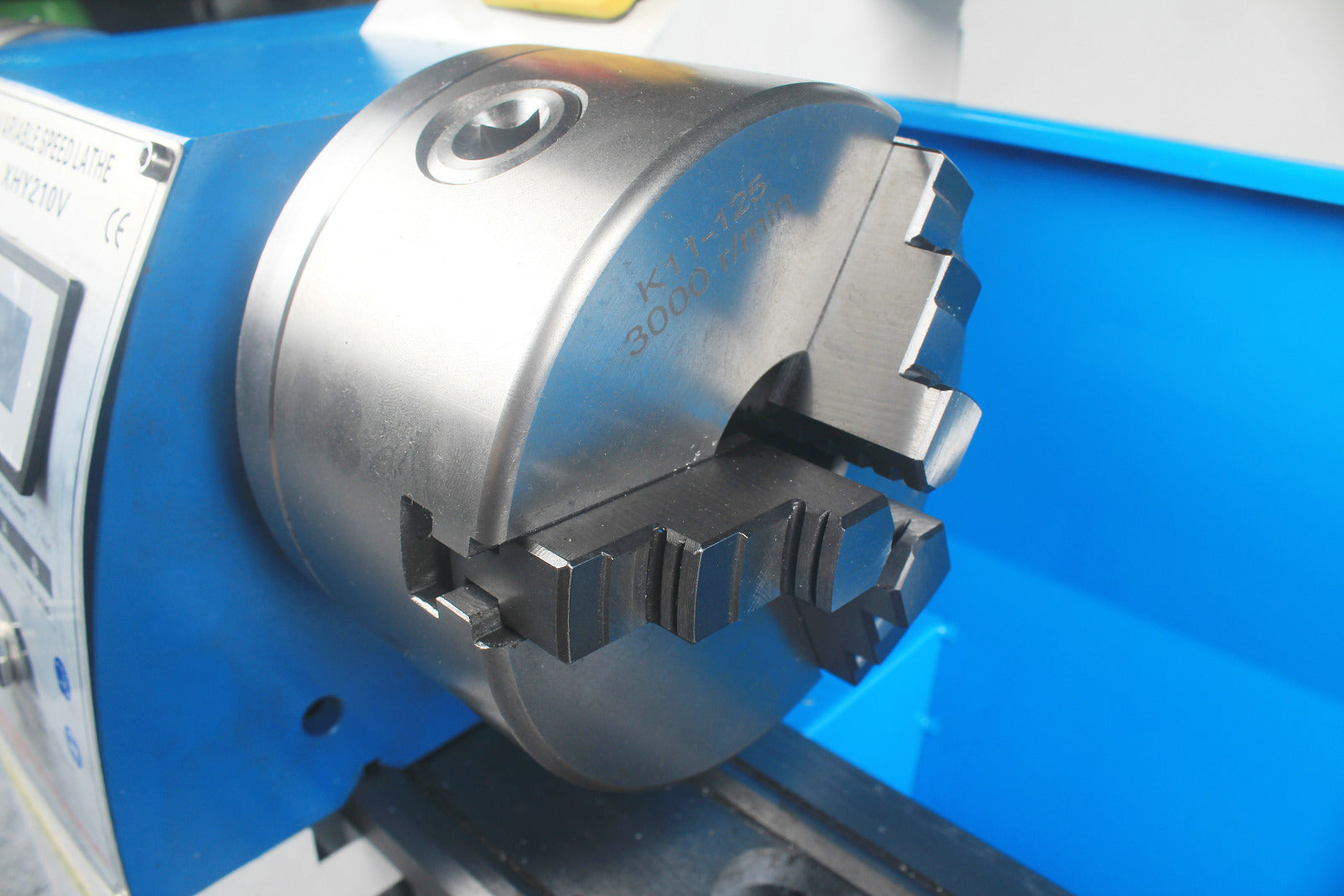

Comes with 3-jaw chuck X2

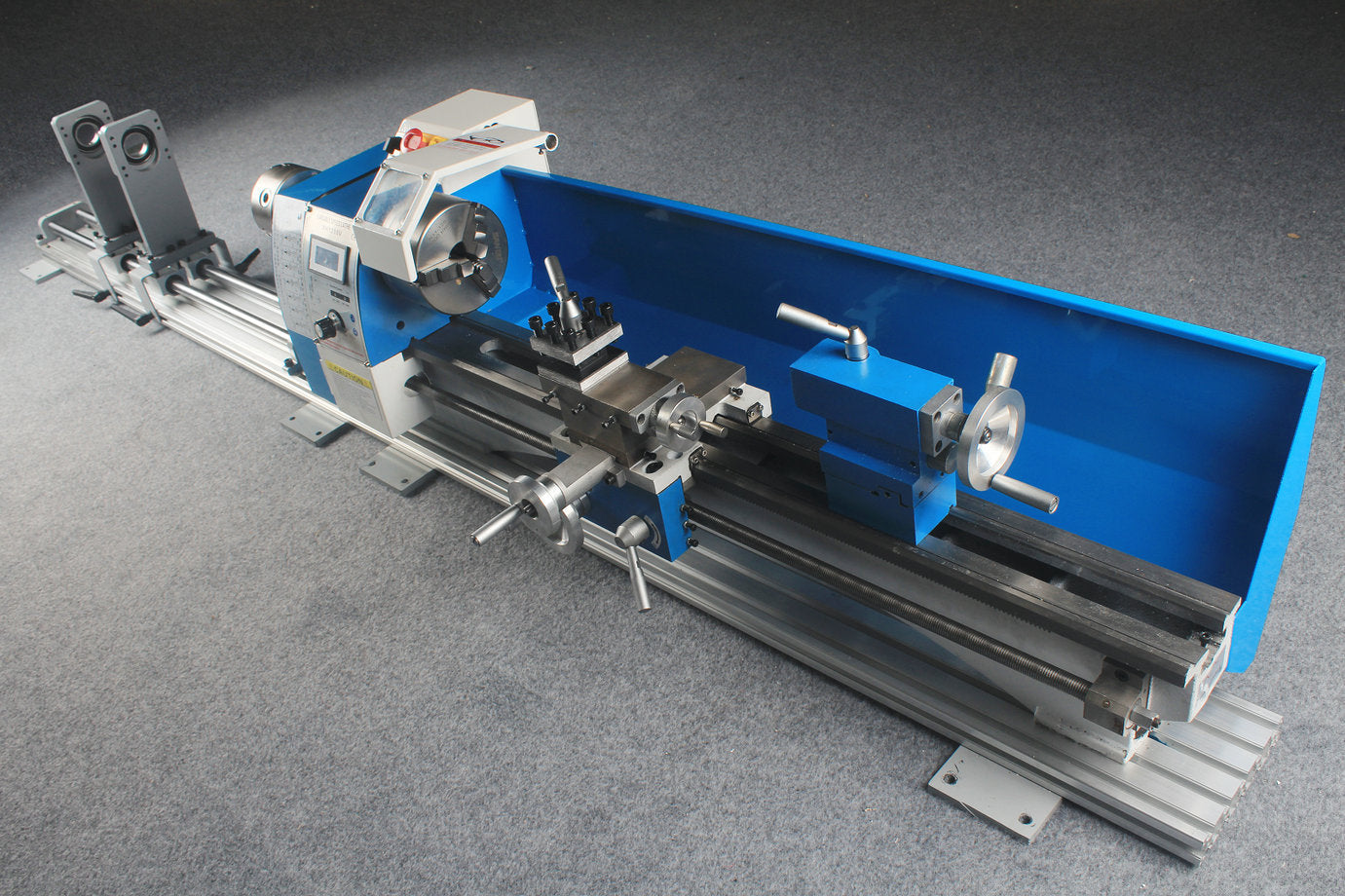

Casting + orbital bed + 210 lathe double-head chuck extended version
Main functions: Repair the leather head, replace the front horn to replace the bronze drum, customize the front horn to customize the bronze drum, slot the back handle, winding,
foreskin handle, change male and female teeth, make female teeth, increase or decrease counterweight, repair loose counterweight, Opening, polishing, sanding, maintenance, etc.

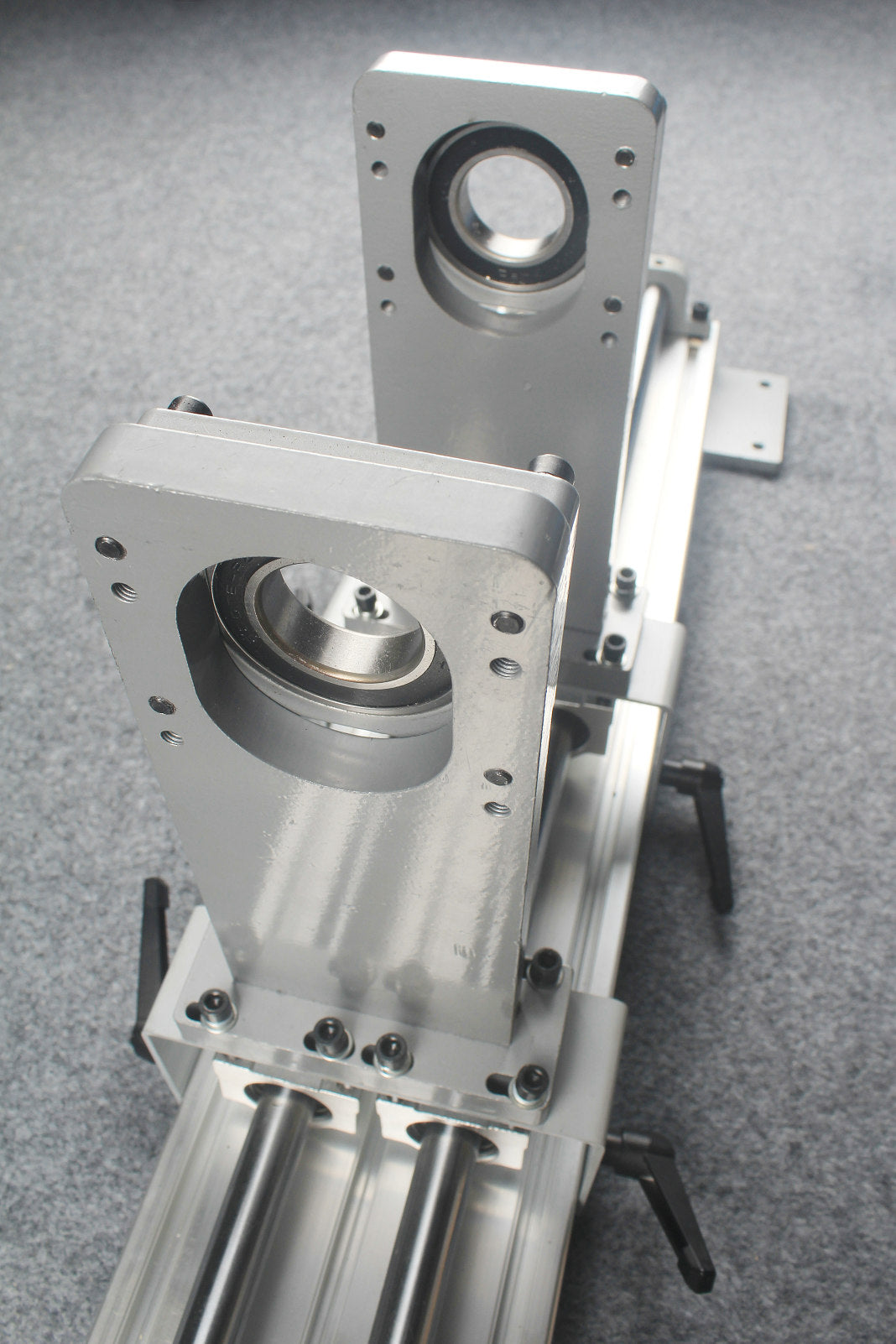

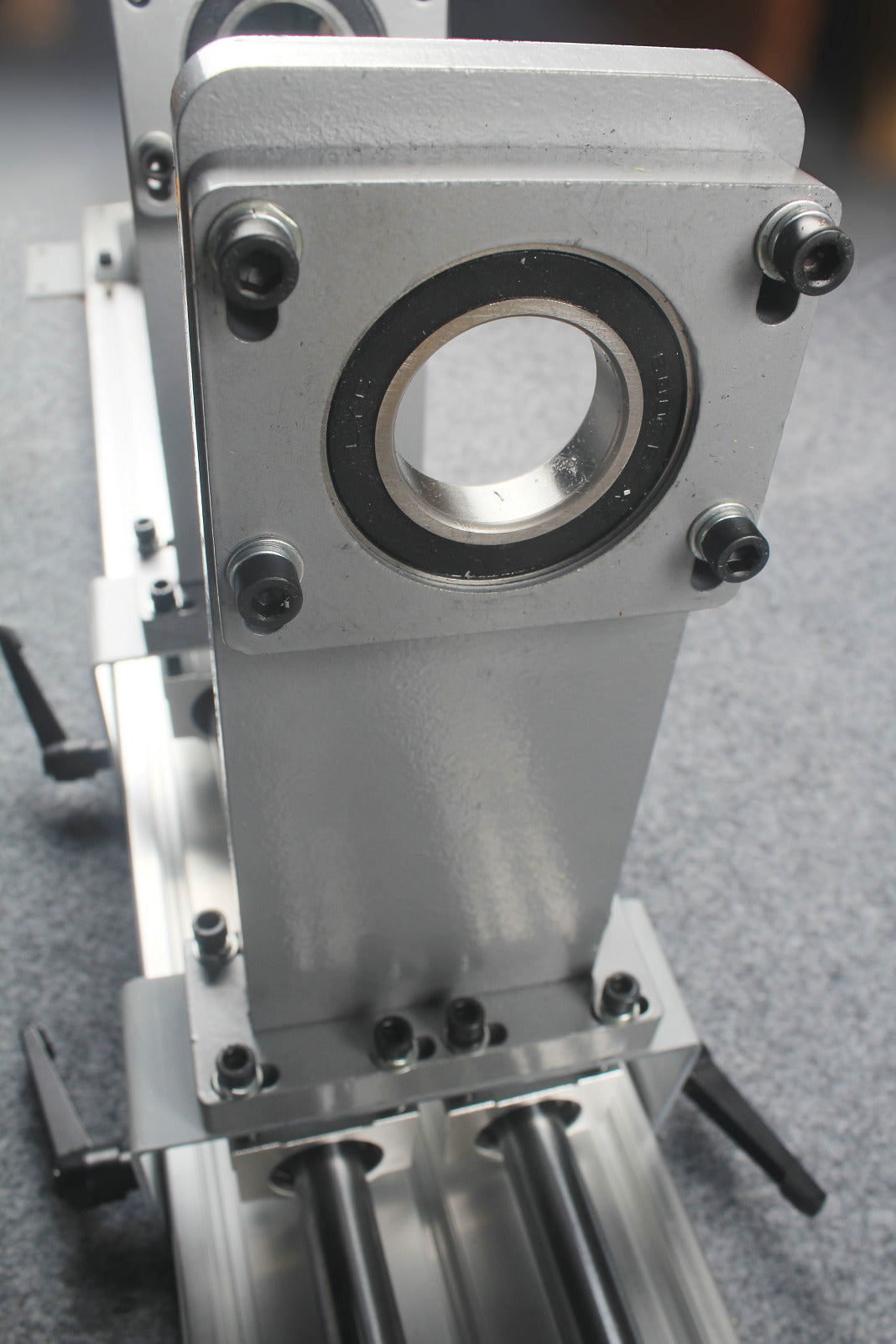

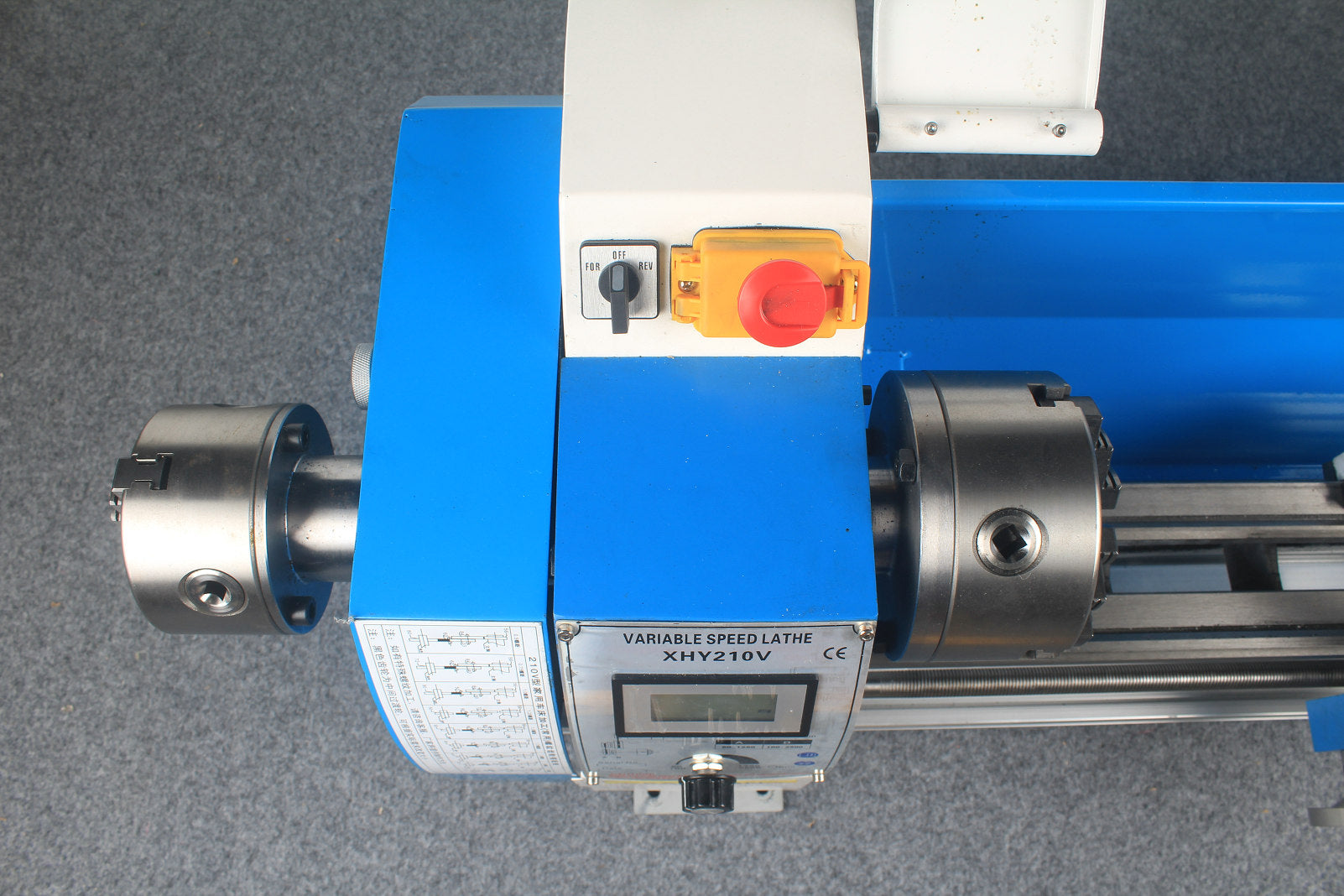

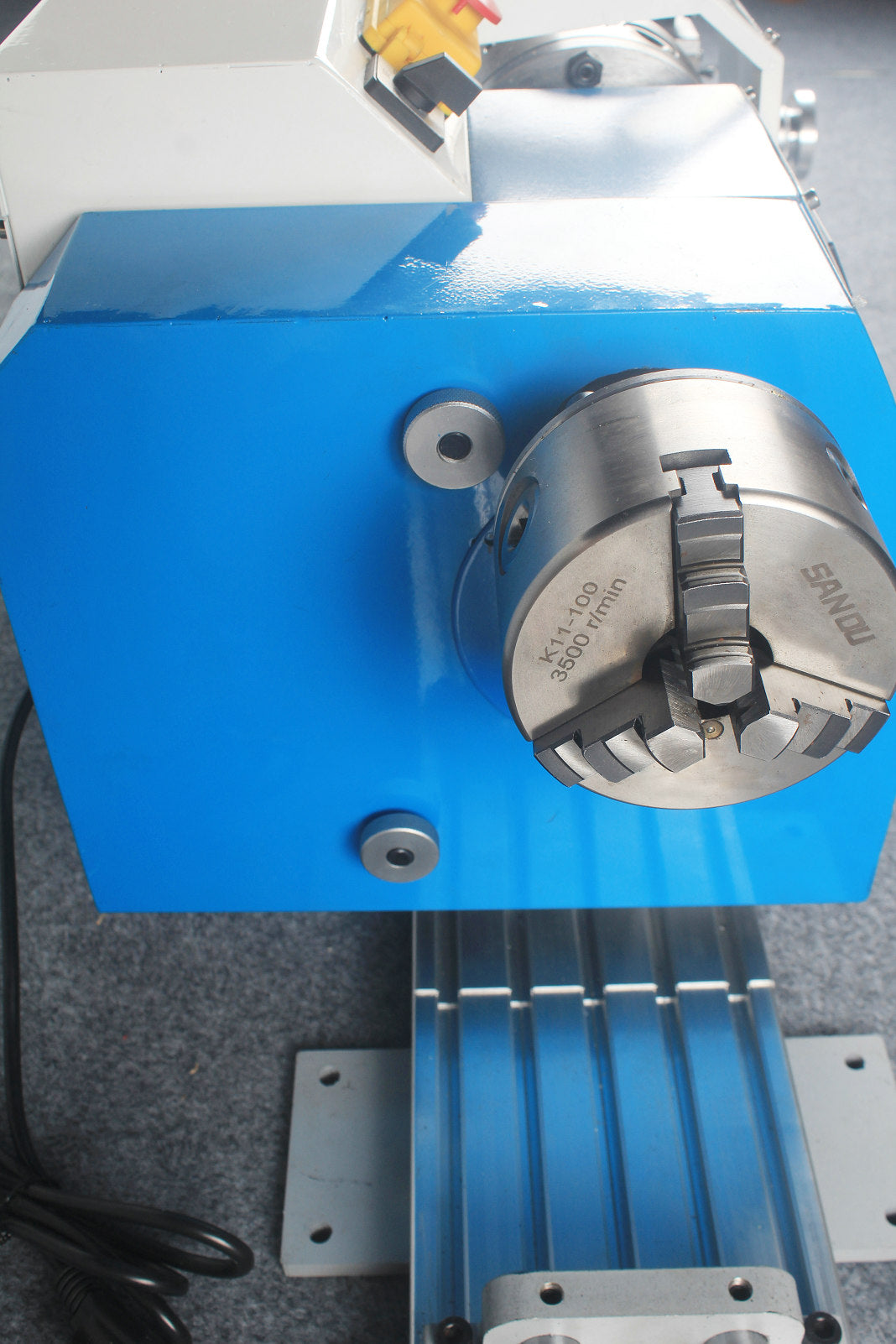

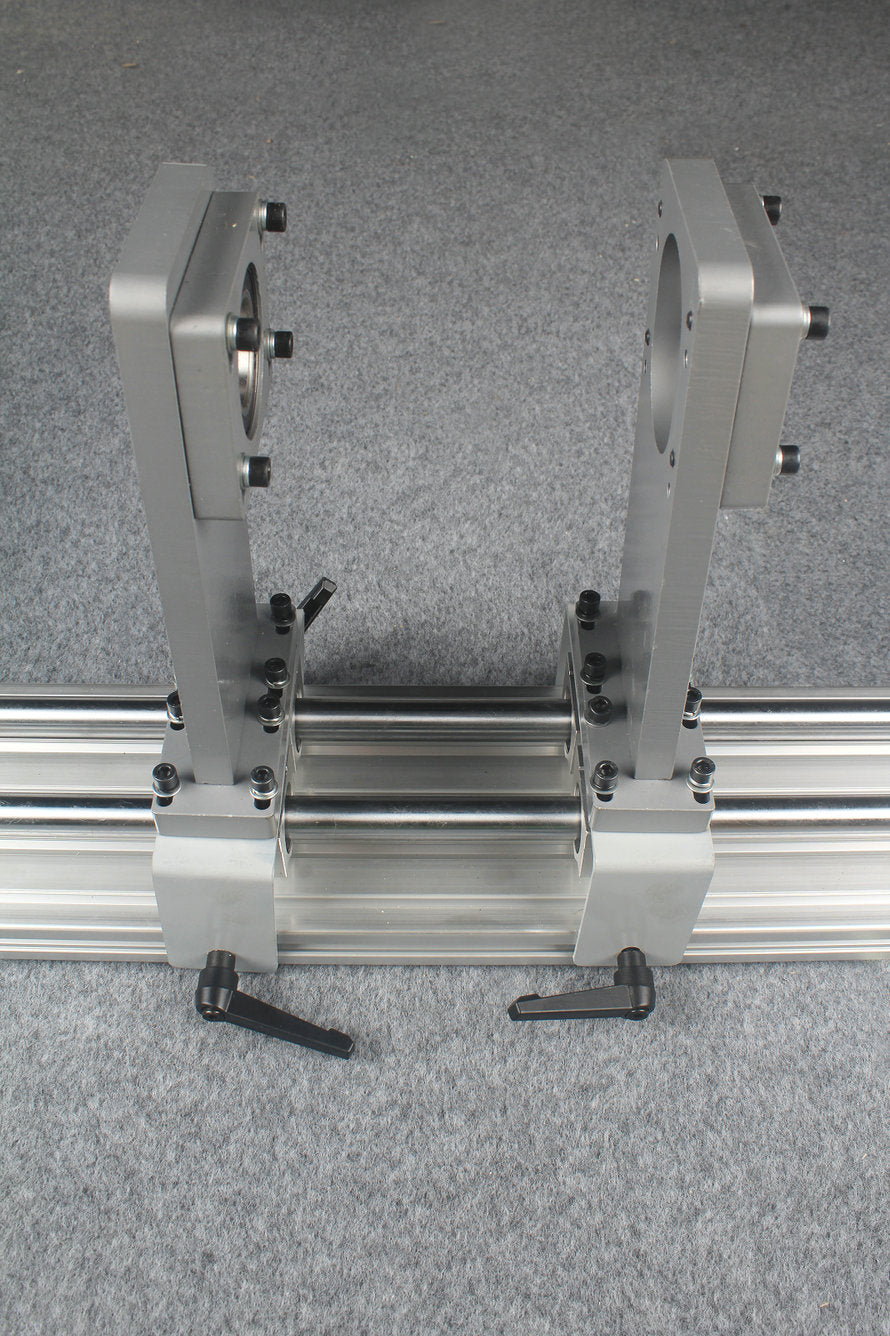

The 210-750 stroke lathe is equipped with an integrated aluminum alloy bearing bracket. 900-watt brushless motor, 100-inch metal chuck on the outside and 125-3-jaw metal
chuck on the inside. The inner chuck can be equipped with an optional 6-jaw chuck. The inner processing length of the bed guide rail is 750 mm, and a chuck center frame is added. This can
replace the position of the tailstock. The club is reversed and passes in from the inside of the bed. The rear handle can be repaired. Except that it cannot be straightened, the
function of repairing the rod is Everything can be done.
| Metric thread range（mm） |
0.5-3 |
| British series of threads |
8 |
| Inch thread range |
8-44T.P.L |
|
Automatic feed range（mm） |
0.1-0.2 |
| Tool rest station |
4 |
| Spindle accuracy |
0.02 |
| Distance between two centers（mm） |
700 |
| Bed rotation diameter（mm） |
210 |
|
Tool holder rotation diameter（mm） |
140 |
| Spindle through hole diameter（mm） |
38 |
| Bed width（mm） |
100 |
| Chuck diameter（mm） |
125 |
| Motor power |
900 |
|
Speed range |
50-2500RPM |
| Shift series |
continuously variable |
| Tailstock sleeve stroke（mm） |
60 |
|
Spindle taper |
MT3 |
| Motor voltage |
220V |
|
Maximum travel of middle drag plate（mm） |
75 |
|
Tail frame taper |
MT2 |
| Maximum travel of tailstock sleeve（mm） |
60 |
|
Number of metric threads |
10 |
weight: 140 KG
Because it is a large item, please contact us info@woodscues.com for a detailed logistics plan before placing an order.
