see you on the table
The machine is capable to make tips, ferrules, tenons adjustment and replacement.

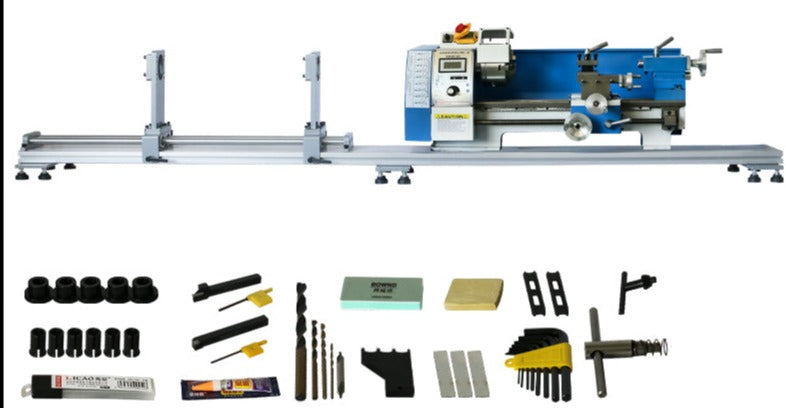

Comes with 3-jaw
chuck casting + orbital bed + 210 lathe double-head chuck
Main functions: repairing the leather head, changing the front horn to replace the bronze drum, customizing the front horn to customize the bronze drum, slotting the back handle, winding,
foreskin handle, changing male and female teeth, making female teeth, cutting, polishing, grinding, maintenance, etc.
#210-400 stroke lathe is equipped with aluminum alloy bearing bracket. 900-watt brushless motor, spindle through hole 38 mm, machine bed guide rail inner
processing length 320 mm, metal lathe casting bed has good stability and long machine life. Compared with the one-piece simple machine, the advantage is that it is more
stable There is concentricity. The whole machine is two meters tall. It is recommended for ball rooms that need expansion.
| Metric thread range（mm） | 0.5-3 |
|
British series of threads |
8 |
|
Inch thread range |
8-44T.P.L |
|
Automatic feed range（mm） |
0.1-0.2 |
| Tool rest station | 4 |
|
Spindle accuracy |
0.02 |
|
Distance between two centers（mm） |
400 |
|
Bed rotation diameter（mm） |
210 |
| Tool holder rotation diameter（mm） | 140 |
|
Spindle through hole diameter（mm） |
38 |
| Bed width（mm） | 100 |
|
Chuck diameter（mm） |
125 |
|
Motor power |
900 |
|
Speed range |
50-2500RPM |
|
Shift series |
continuously variable |
|
Tailstock sleeve stroke（mm） |
60 |
|
Spindle taper |
MT3 |
|
Motor voltage |
220V |
| Maximum travel of middle drag plate（mm） |
75 |
|
Tail frame taper |
MT2 |
|
Maximum travel of tailstock sleeve（mm） |
60 |
|
Number of metric threads |
10 |
weight: 100 KG
shipping time: 40-50 days to your door
